Radial component
preparation machine

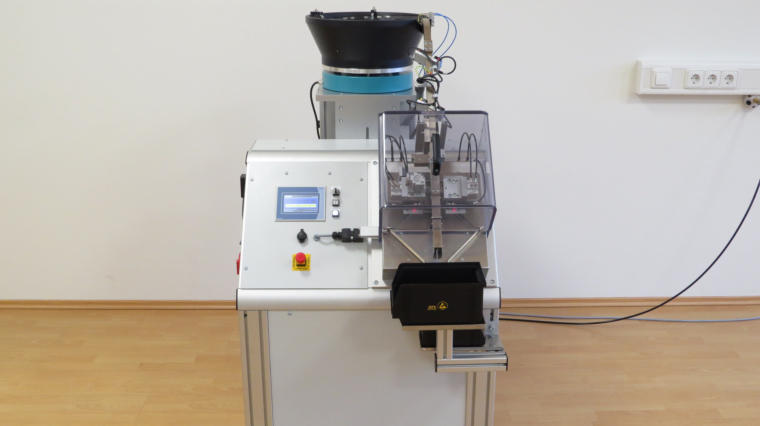

LBM 80
Cutting, bending and crimping machine for the processing of
electronic components with radial leads, feeding from
- stacks
- vibration bowl
- tape
- hand (by small capacity)
Machine description:
•
Standard tools for TO5, TO18, TO92, TO126, TO218,
TO220, TO252
•
Tools for processing electrolytic capacitors (only from tape
possible)
•
Tools for polarity protection (only with taped components
possible)
•
Tools as customized versions available
•
Tools made with carbide to guarantee high durability
•
Tools are driven by cam discs
•
Component body is always tension released during
processing
•
Minimal pressure marks on the wire
•
Lead diameters: 0.4 - 1.3 mm
•
Pin length and crimping deepness are infinitely adjustable
•
Component pitch 25.4 mm (1”) or 12.7 mm (½”)
•
Tape hole pitch 12.7 mm (½”), alternatively 15.0 mm
•
Easy exchange of tools to another component type possible
within a few minutes
•
Cutting tool for shredding the tape (optional available)
•
Output: up to 5000 components/hour (depending on
component and processing)
•
Controller PLC Biviator (Switzerland); different parameters
adjustable; plain text display
•
Transparent protective cover, ESD optional
•
Electric drive (three-phase motor)
•
Power consumption: max. 900 W
•
Operation voltage: 230V/50Hz (standard), other voltages are
available on demand
•
Air supply: 6 bar by pneumatic demand
•
Length x width x height (without accessories): 1100 x 800 x
1200 mm
•
Weight: approx. 80 kg (without accessories)
