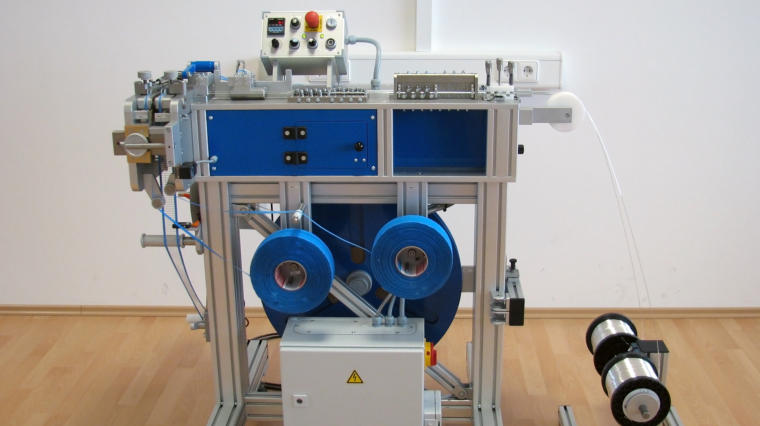

Special machine
DGM 200
Machine for taping wires with a diameter of 0.5 mm to 1.2 mm from
reel to tape.
Machine description:
•
Lead diameters: 0.5 - 1.2 mm (standard)
•
Optional: 0.3 mm lead diameter with modification kit
•
Component pitch in tape: 5 mm (standard)
•
On request other wire distances possible (e.g. 5.08 mm)
•
Tape width infinitely adjustable from 38 to 95 mm
•
Output: approx. 12500 parts/hour
•
Wire straightener
•
Sensors for wire and tape strap control
•
Electronic counter
•
Siemens PLC control
•
Winding unit for produced spools Ø 33 mm (carton or
plastic)
•
Unwinding unit for wire reel
•
Electric drive (three-phase motor) combined with pneumatic
•
Protective cover according to safety regulations
•
The following combinations for the tape are possible:
o
plastic paper tape (down) + self-adhesive tape (top)
o
self-adhesive tape (top and down)
•
Operation voltage: 230V/50Hz (standard), other voltages are
available on demand
•
Air supply: 6 bar by pneumatic demand
•
Length x width x height: 1500 x 1200 x 1400 mm
•
Weight: approx. 120 kg
Standard version (for 0.5 -
1.2 mm lead diameter)
With modification kit (for
0.3 mm lead diameter)
