Special machine

Test machine

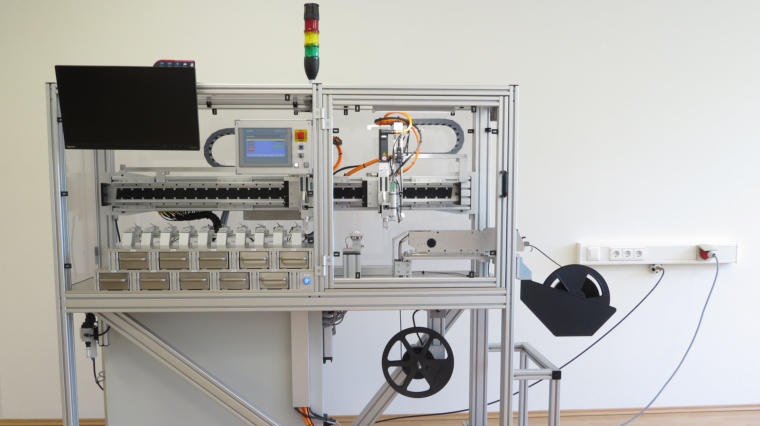

Electric test and sorting machine for transistors to further process from box or from blister tape. Machine description: Siemens S7 PLC touch panel Handling system is driven by an electric drive with axes in movement direction X, Z, and U. Sorting flap pneumatically controlled 10 sorting boxes (can be optionally adjusted) Transistors feeding via blister tape through feeder Test cavity for transistors Test equipment has to be provided by the customer; the integration into the production line will be done by Weresch Automat Carrier tape can be wound up for reuse or shredded for disposal Output of the system: approx. 1600 parts per hour Operation voltage: 230V/50Hz (standard), other voltages are available on demand Air supply: 6 bar by pneumatic demand ESD version
