Blister taping machines

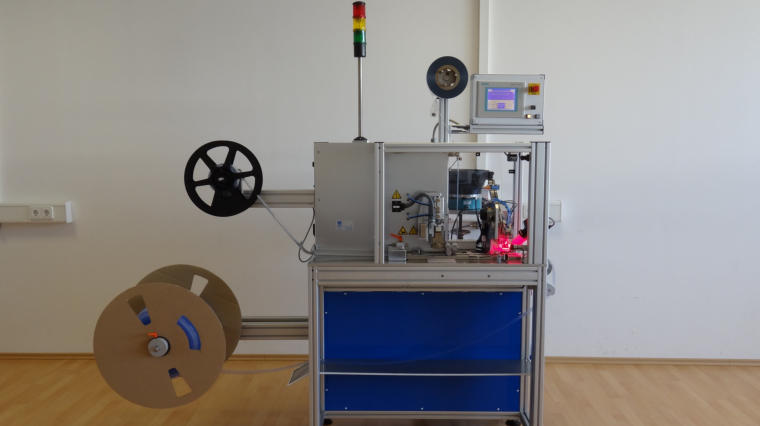

SGM 160

Blister taping machine for packaging SMD components or other small mechanical parts with component feeding from: vibration bowl production line punching machine stacks Maschine description: Tape width 8 to 72 mm, pocket depth 14 mm (standard) Larger tape width possible on request Easy conversion to another component type within a few minutes Output: up to 4000 parts/hour possible Reel diameters: 560 mm unwinding, 330 mm winding Siemens S7 PLC touch panel Component handling by vakuum sucker or parallel gripper Hot sealing device or cold sealing device Option: electronic turning station, 90° steps Option: component turning by 180° Option: Cutting device Option: optical inspection device Modular construction Custom design possible Automatic adjustment of tape feed Various adjustable parameters: e.g. nominal quantity, leader length, trailer length, hot sealing temperature, time, and pressure, tolerance of sealing temperature, automatic cutting, vacuum settings. Easy conversion to another component type within a few minutes Transparent protective cover, ESD option Electric drive (step motor) Operation voltage: 230V Air supply: 6 bar (for hot sealing and cutting device) Dimensions: length x width x height: 1600 mm x 560 mm x 1800 mm Weight: approx. 140 kg
Presentation with vibration bowl For integration into a production line Presentation with glass ampoules SGM 160
